Telewave ANT37D 33.5 - 41 MHz 1 to 2.6 dBd 500 Watts - 145" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT37D is a rugged, high-performance single dipole antenna designed for VHF lowband services, including public safety, utilities, paging links and military communication. This antenna provides 7.5 MHz bandwidth with no tuning required, and multiple elements can be stacked for increased gain and pattern control. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent intermodulation. All components are at DC ground potential for lightning protection, and each antenna is completely protected with our high-tech Txylan™ coating. This smooth black coating resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain and windblown abrasives. ANT37D antennas include ANTC482 mounting hardware which will accommodate up to a 4” diameter galvanized steel support pipe or tower leg. Due to the size and potential wind loading of this antenna, tower side mounting is recommended. H-Plane gain 2.5 dBd 1/4 wl. spacing from tower |
||||||
| |||||||
|
Telewave ANT40D 37.5 - 44.5 MHz 1 to 2.6 dBd 500 Watts - 129" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT40D is a rugged, high-performance single dipole antenna designed for VHF lowband services, including public safety, utilities, paging links and military communication. This antenna provides 7 MHz bandwidth with no tuning required, and multiple elements can be stacked for increased gain and pattern control. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent intermodulation. All components are at DC ground potential for lightning protection, and each antenna is completely protected with our high-tech Txylan™ coating. This smooth black coating resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain and windblown abrasives. ANT40D antennas include ANTC482 mounting hardware which will accommodate up to a 4” diameter galvanized steel support pipe or tower leg. Due to the size and potential wind loading of this antenna, tower side mounting is recommended. H-Plane gain 2.5 dBd 1/4 wl. spacing from tower FREE SHIPPING Telewave Datasheet |
||||||
| |||||||
|
Telewave ANT50D 45 - 54 MHz 1 to 2.6 dBd 500 Watts - 108" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT50D is a rugged, high-performance single dipole antenna designed for VHF lowband services, including public safety, utilities, paging links and military communication. This antenna provides 9 MHz bandwidth with no tuning required, and multiple elements can be stacked for increased gain and pattern control. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent intermodulation. All components are at DC ground potential for lightning protection, and each antenna is completely protected with our high-tech Txylan™ coating. This smooth black coating resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain and windblown abrasives. ANT50D antennas include ANTC482 mounting hardware which will accommodate up to a 4” diameter galvanized steel support pipe or tower leg. Due to the size and potential wind loading of this antenna, tower side mounting is recommended. H-Plane gain 2.5 dBd 1/4 wl. spacing from tower FREE SHIPPING Telewave Datasheet |
||||||
| |||||||
|
Telewave ANT70D 63 - 78 MHz 1 to 2.6 dBd 500 Watts - 76" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT70D is a rugged, high-performance single dipole antenna designed for VHF lowband services, including public safety, utilities, paging links and military communication. This antenna provides 15 MHz bandwidth with no tuning required, and multiple elements can be stacked for increased gain and pattern control. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent intermodulation. All components are at DC ground potential for lightning protection, and each antenna is completely protected with our high-tech Txylan™ coating. This smooth black coating resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain and windblown abrasives. A full clamp set is included for mounting to a 1.5" to 3.5" diameter galvanized steel support pipe or tower leg. H-Plane gain 2.5 dBd 1/4 wl. spacing from tower FREE SHIPPING Telewave Datasheet |
||||||
| |||||||
|
Telewave ANT75D 66 - 88 MHz 1 to 2.6 dBd 500 Watts - 68" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT75D is a rugged, high-performance single dipole antenna designed for VHF lowband services, including public safety, utilities, paging links and military communication. This antenna provides 15 MHz bandwidth with no tuning required, and multiple elements can be stacked for increased gain and pattern control. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent intermodulation. All components are at DC ground potential for lightning protection, and each antenna is completely protected with our high-tech Txylan™ coating. This smooth black coating resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain and windblown abrasives. A full clamp set is included for mounting to a 1.5" to 3.5" diameter galvanized steel support pipe or tower leg. H-Plane gain 2.5 dBd 1/4 wl. spacing from tower FREE SHIPPING Telewave Datasheet |
||||||
| |||||||
|
Telewave ANT90D 88 - 108 MHz 1 to 2.6 dBd 500 Watts - 60" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT90D is a rugged, high-performance single dipole antenna designed for the FM broadcast band. This antenna provides 20 MHz bandwidth with no tuning required. The horizontal pattern is adjustable, and multiple elements can be stacked for increased gain and pattern control. This antenna is ideal for LPFM and translator stations for fill-in or small-market coverage. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent intermodulation. All components are at DC ground potential for lightning protection, and each antenna is completely protected with our high-tech Txylan™ coating. This smooth black coating resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain and windblown abrasives. A full clamp set is included for mounting to a 1.5" to 3.5" diameter galvanized steel support pipe or tower leg. FREE SHIPPING Telewave Datasheet |
||||||
| |||||||
|
Telewave ANT120D 110 - 138 MHz 1 to 2.4 dBd 500 Watts - 45" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT120D is a rugged, high-performance single dipole antenna designed for aircraft communications, telemetry, and military applications. Gain is adjustable from 1-2.4 dBd, and multiple elements can be stacked for increased gain and pattern control. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent intermodulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. FREE US SHIPPING Telewave Datasheet |
||||||
| |||||||
|
Telewave ANT120D3 110 - 138 MHz 3 to 5.6 dBd 500 Watts - 124" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT120D is a rugged, high-performance single dipole antenna designed for aircraft communications, telemetry, and military applications. Gain is adjustable from 3-5.6 dBd, and multiple elements can be stacked for increased gain and pattern control. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent intermodulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. FREE US SHIPPING Telewave Datasheet |
||||||
| |||||||
|
Telewave ANT150D 138 - 174 MHz 1 to 2.5 dBd 500 Watts - 36" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT150D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is uniquely field-adjustable, and can accommodate any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for applications requiring combined transmitters, including trunking, business, public safety, and paging Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent inter-modulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. |
||||||
| |||||||
|
Telewave ANT150D3 138 - 174 MHz 3 to 6 dBd 500 Watts - 89" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT150D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is uniquely field-adjustable, and can accommodate any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for applications requiring combined transmitters, including trunking, business, public safety, and paging Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent inter-modulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. |
||||||
| |||||||
|
Telewave ANT150D6-9 138 - 174 MHz 6 to 9 dBd 500 Watts - 195" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT150D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is uniquely field-adjustable, and can accommodate any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for applications requiring combined transmitters, including trunking, business, public safety, and paging. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent inter-modulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. |
||||||
| |||||||
|
Telewave ANT150D7-12 138 - 174 MHz 7 to 12 dBd 500 Watts - 480" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT150D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is uniquely field-adjustable, and can accommodate any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for applications requiring combined transmitters, including trunking, business, public safety, and paging. Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent inter-modulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. |
||||||
| |||||||
|
Telewave ANT200D 216 - 252 MHz 1 to 2.6 dBd 500 Watts - 30" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT220D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is uniquely field-adjustable, and can accommodate any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for applications requiring combined transmitters, including trunking, business, public safety, and paging Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent inter-modulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. |
||||||
| |||||||
|
Telewave ANT450D3 406-512 MHz 1 to 2.6 dBd 500 Watts - 18" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Single Dipole Model ANT450D3 Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT450D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is uniquely field-adjustable, and can accommodate any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for applications requiring combined transmitters, including trunking, business, public safety, and paging Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent inter-modulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. |
||||||
| |||||||
|
Telewave ANT450D6 406-512 MHz 3 to 6 dBd 500 Watts - 38" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Dual Dipole Model ANT450D6 Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT450D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is uniquely field-adjustable, and can accommodate any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for applications requiring combined transmitters, including trunking, business, public safety, and paging Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent inter-modulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. |
||||||
| |||||||
|

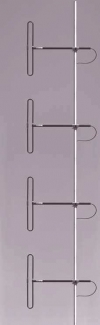

Telewave ANT450D9 406-512 MHz 6 to 9 dBd 500 Watts - 78" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Four Dipole Model ANT450D9 Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT450D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is uniquely field-adjustable, and can accommodate any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for applications requiring combined transmitters, including trunking, business, public safety, and paging Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent inter-modulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. |
||||||
| |||||||
|

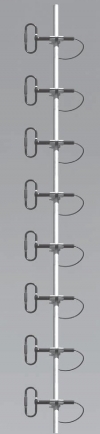

Telewave ANT450D12 406-512 MHz 7 to 12 dBd 500 Watts - 156" Height EXPOSED DIPOLE ARRAYS 33-512 MHz ADJUSTABLE PATTERNS 500 WATTS Eight Dipole Model ANT450D12 Standard connector is N-Male on a pigtail. 7-16 DIN* available. All dipoles and arrays are field-configurable and UPS shippable, and include clamps for mounting to an existing mast or other support. 2, 4, and 8 bay arrays can be ordered with up to 15 degrees of electrical uptilt or downtilt. The Telewave ANT450D series consists of single, dual, four and 8-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is uniquely field-adjustable, and can accommodate any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for applications requiring combined transmitters, including trunking, business, public safety, and paging Each antenna is constructed with 6061-T6 aluminum, welded at the base connection to prevent inter-modulation, and all elements are at DC ground potential for lightning protection. Each element is completely protected with our proprietary, high-tech TxylanTM coating. The black TxylanTM coating is highly resistant to the accumulation of water and ice, and provides exceptional protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and abrasives such as windblown sand. The support boom, and the radome which covers the electrical junction, are oversized to ensure survival in hurricane force winds. A full clamp set is included for mounting to a 1.5" to 2.5" diameter galvanized steel support pipe or tower leg. |
||||||
| |||||||
