Comet H-422 Rotatable Dipole 40-10 Meters.
The H-422 is a broad-band, compact dipole designed to offer excellent performance even when mounted at only 10-15 ft above ground in a V shape. No nulls with this antenna mounted on a light duty ham antenna rotor you can adjust for maximum radiation in any direction. Great for those with limited real estate, low profile, high performance. Ships by UPS. - Frequency Range: 7, 14, 21, 28MHz
- VSWR: 1.5:1 or less after tuning
- Impedance: 50 Ohm
- Length: "V" shape 24 ft 5 inches
Straight 33 ft 10 inches - Weight: 11 lbs 14 ozs
- Max Power: 1000W SSB / 500W FM
- Max Wind Survival: 67MPH
- Wind Load: 9.9 sq feet
- Connector: SO-239
- Construction: Aluminum tubing, stainless steel hardware
- 2kW Balun included
FREE USA SHIPPING ON THIS ANTENNA Specifications and Pictures PDF
|
|
|
|
| |
|
Comet HVU-8 Eight Band Base Station Antenna
HVU-8 Eight Band base Station Antenna. Low profile base station or portable antenna for HF/VHF/UHF. 80/40/20/15/10/6/2M/70cm (3.5 MHz - 450 MHz). - Gain & Wave: 80-6M: 1/4 wave 146MHz: 1/2 wave 2.15dBi 446MHz: 5/8 wave x 2 5.5dBi
- VSWR: 1.5:1 or less
- Max Power: HF: 200W SSB 6M -70cm 150W FM
- Length: 8’ 6" (approx)
- Weight: 5’ 7"
- Connector: SO-259
Ships by UPS FREE USA SHIPPING ON THIS ANTENNA Product Review
|
|
|
|
| |
|

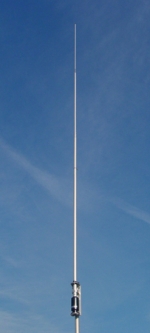

Comet CHA-250B HF Broadband Vertical 3.5-57 MHz
The Comet CHA250B broadband vertical antenna will amazingly cover 75/80 meters through 6 meters with no gaps! - Transmit Range: 3.5 - 57 MHz
- Receive Range: 2-90 MHz
- SWR: <1.5:1
- Height: 23.5 feet
- Weight: 7.1lbs
- Power: 250 Watts SSB, 125 Watts CW
- Wind Survival: 67 MPH
This 23.5 foot vertical requires no radials and weighs only 7.1 lbs. The antenna consists of five sections of aluminum tubing that slide into each other. The bottom section has the matching network built-in. Only two simple measurements are required during the easy assembly. It can handle 250 watts SSB and 125 watts CW/FM. SO-239 input. Mounts on a 1.2 to 2.8 inch mast (not supplied, see options). The recommended mounting height is 8 to 10 feet from base of the antenna to ground. Best performance is realized when installed 33 feet above ground. Comet offers the optional CP45 mast and optional YS45 tripod for using the CHA250B in the field (see below). FREE USA SHIPPING ON THIS ITEM Product Review PDF
|
|
|
|
| |
|
Collapsible Mast for CHA-250B Broadband HF Vertical
The Comet CP45 is a collapsible, 4 section telescopic mast. It can be extended to 14.7 feet and collapses down to a neat 54 inches and weighs only 3 lbs. The maximum weight load is 22 lbs. The maximum diameter is 1 5/16 inches and the minimum is 7/8 inches. It friction locks with nylon compression bushings. It has a guy bracket and 45 feet of guy line is included. The CP45 is designed to be supported by the Comet YS45 tripod.
|
|
|
|
| |
|
Comet YS45 Tripod for CHA-250B HF Broadband Vertical
The Comet YS45 aluminum tripod is a perfect match with the CP45 telescopic mast (shown and sold separately). The minimum length is 34 inches and the maximum mast length is 55 inches. The support leg radius is 24 inches. The maximum weight load is 22 lbs. This tripod weighs only 3 lbs, 4 ounces. It features friction lock with nylon bushing.
|
|
|
|
|
