Comtelco manufactures all base station antennas in our plant in Glendale Heights, Illinois. In developing our designs, we use the latest state of the art test and measurement equipment available.

Comtelco antennas are manufactured using proven design techniques and specialized materials that provide economical and reliable long term operation. Our designs are constantly being reviewed and upgraded. We want to be certain that the best possible product is always being shipped.

Our omni directional base station antennas are mostly center fed dipoles available in various configurations.

Specific applications are addressed by offering both standard bandwidth and wide bandwidth antennas at certain frequencies. Specific mounting options are also available.

The construction used in our antennas features copper alloy elements soldered and/or welded for electrical and mechanical integrity. The element structure is encased in a UV inhibited fiberglass radome assuring long life and excellent resistance to harsh environments. This design allows for high power handling capability while minimizing inter modulation. Construction of this type is not usually used in lower cost base station antennas. A complete drain system provides the necessary means of dissipating any moisture build up from condensation caused by temperature fluctuations.

Check out the new offerings for 2.4 GHz, 5.8 GHz, and 380 MHz for HOMELAND SECURITY.

Our new 1.5" diameter heavy duty BSL series base station antennas are the most robust antennas we have ever offered. Built to stand up to the most demanding applications, they set a new standard for reasonably priced, heavy duty base station antennas.

Models available in 3 Radome sizes, Standard 1", Heavy Duty 1-1/2", and Super Duty 2".

SELECT FROM THE PRODUCT LIST BELOW FOR THE MODEL TO MATCH YOUR REQUIRMENTS

MartinRFSupply.net or MartinRFSupply.com

All Comtelco VHF band antennas are available in three different radome diameters.

The BSLL series has a super duty 2" diameter radome that provides the most protection of all our omni-directional base antennas.

Features: Comtelco VHF Omini-Directional Base Station Antenna
75 - 225 MHz - Dual Band available
Unity to 3 dBd Gain - HF also available

SELECT FROM THE LIST BELOW FOR THE MODEL TO MATCH YOUR REQUIRMENTS

BSLL Super Duty Series

HF Unity Gain, 144"
BSLL50U-XX 45-75 MHz

VHF Unity Gain 96"
BSLL100U-XX 75-140 MHz

VHF Unity Gain, 64"
BSLL150U-A 144-150 MHz
BSLL150U-B 150-156 MHz
BSLL150U-C 156-162 MHz
BSLL150U-D 162-168 MHz
BSLL150U-E 168-174 MHz
BSLL220U-A 200-210 MHz
BSLL220U-B 210-220 MHz
BSLL220U-C 215-225 MHz

VHF 3dBd Gain, 96"
BSLL150XL3-A 144-150 MHz
BSLL150XL3-B 150-156 MHz
BSLL150XL3-BC 153-159 MHz
BSLL150XL3-C 156-162 MHz
BSLL150XL3-D 162-168 MHz
BSLL150XL3-E 168-174 MHz
BSLL220XL3-A 200-210 MHz
BSLL220XL3-B 210-220 MHz
BSLL220XL3-C 215-225 MHz

Dual Band VHF/UHF
Unity Gain, 64"
BSLLDB31U 140-174/440-512 MHz

Comtelco VHF Antenna Specifications

MartinRFSupply.net or MartinRFSupply.com

1.8/2.4 GHz Base Station Antennas

All Comtelco 1.8/2.4 GHz band antennas are available in three different radome configurations.

The BSLL series has a super duty 2" diameter radome that provides the most protection of all our omni-directional base antennas.

The BSL series has a heavy duty 1 1/2" diameter radome to withstand the most demanding conditions.

The BSXL series has a standard duty 1" diameter radome that suits all applications where the BSL is not needed.

The BNF/BNM series antenna is a lighter duty, lower cost alternative to the BSXL series. It has a 1/2" diameter radome, 1 1/2" mounting sleeve and a complete drain system for outdoor use.

Features:
Comteclo 1.8/2.4 GHz Omni-DIrectional Base Antenna
1.2 - 2.5 GHz - 5 to 14 dBi Gain
18" - 60" Long -Tri Mode available

BSLL Series Super Duty 2" Diameter Radome

1.4 GHz 6.5 dBi Gain, 40"
BSLL1350XL5WB 1200-1550 MHz

1.8 GHz/2.4 GHz 5dBi Gain, 18"
BSLL1850XL3 1850-1990MHz
BSLL2400XL3 2400-2500 MHz

1.8 GHz/2.4 GHz 7.5 dBi Gain, 24"
BSLL1850XL6 1850-1990 MHz
BSLL2400XL6 2400-2500 MHz

2.4 GHz 14 dBi Gain, 60"
BSLL2400XL12 2400-2500 MHz

Tri Mode 3 dB 18" 800 / 1900 Cell / PCS
BSLLDB18U8 825-896/1850-1990 MHz

Dual Band 900/1800 MHz Unity Gain
BSLLDB18U9 921-960/1805-1880 MHz

BSL SERIES Heavy Duty 1-1/2" Diameter Radome

1.4 GHz 6.5 dBi Gain, 40"
BSL1350XL5WB 1200-1550 MHz

1.8 GHz/2.4 GHz 5dBi Gain, 18"
BSL1850XL3 1850-1990MHz
BSL2400XL3 2400-2500 MHz

1.8 GHz/2.4 GHz 7.5 dBi Gain, 24"
BSL1850XL6 1850-1990 MHz
BSL2400XL6 2400-2500 MHz

2.4 GHz 14 dBi Gain, 60"
BSL2400XL12 2400-2500 MHz

Tri Mode 3 dB 18" 800 / 1900 Cell / PCS
BSLDB18U8 825-896/1850-1990 MHz

Dual Band 900/1800 MHz Unity Gain
BSLDB18U9 921-960/1805-1880 MHz

BSXL SERIES Standard Duty 1" Diameter Radome

1.4 GHz 6.5 dBi Gain, 40"
BS1350XL5WB 1200-1550 MHz

1.8 GHz/2.4 GHz 5dBi Gain, 18"
BS1850XL3 1850-1990MHz
BS2400XL3 2400-2500 MHz

1.8 GHz/2.4 GHz 7.5 dBi Gain, 24"
BS1850XL6 1850-1990 MHz
BS2400XL6 2400-2500 MHz

2.4 GHz 14 dBi Gain, 60"
BS2400XL12 2400-2500 MHz

Tri Mode 3 dB 18" 800 / 1900 Cell / PCS
BSDB18U8 825-896/1850-1990 MHz

Dual Band 900/1800 MHz Unity Gain
BSDB18U9 921-960/1805-1880 MHz

Comtelco 1.8/2.4 GHz Antenna Specifications

MartinRFSupply.net or MartinRFSupply.com

Comtelco 5.8 GHz Base Station Antennas

The BSLL series has a super duty 2" diameter radome that provides the most protection of all our omni-directional base antennas.

The BSL series has a heavy duty 1 1/2" diameter radome to withstand the most demanding conditions.

The BSXL series has a standard duty 1" diameter radome that suits all applications where the BSL is not needed.

The BNF/BNM series antenna is a lighter duty, lower cost alternative to the BSXL series. It has a 1/2" diameter radome, 1 1/2" mounting sleeve and a complete drain system for outdoor use.

Features
8 dBi Gain
20" tall

SELECT FROM THE LIST BELOW FOR THE MODEL TO MATCH YOUR REQUIRMENTS

BSLL SERIES Super Duty 2" Radome Diameter

5.8 GHz 10 dBi Gain, 18"
BSLL5800XL10 5.725-5.850 GHz

BSL SERIES Heavy Duty 1-1/2" Diameter Radome

5.8 GHz 10 dBi Gain, 18"
BSL5800XL10 5.725-5.850 GHz

BSXL SERIES Standard 1" Diameter Radome

5.8 GHz 10 dBi Gain, 18"
BS5800XL10 5.725-5.850 GHz

5.8 GHz 8 dBi Gain, 8"
BS5808NMW 5.7-5.9GHz
BS5808NMB 5.7-5.9GHz

BNF SERIES

5.8 GHz 6 dBi Gain 14" N Female
BNF5806S 5.725-5.925 GHz

Comtelco 5.8 GHz Antenna Specifications

MartinRFSupply.net or MartinRFSupply.com

All Comtelco VHF band antennas are available in three different radome diameters.

The BSLL series has a heavy duty 1 1/2" diameter radome to withstand demanding conditions.

Features: Comtelco VHF Omini-Directional Base Station Antenna
75 - 225 MHz - Dual Band available
Unity to 3 dBd Gain - HF also available

SELECT FROM THE LIST BELOW FOR THE MODEL TO MATCH YOUR REQUIRMENTS

BSL Heavy Duty Series

HF Unity Gain, 144"
BSL50U-XX 45-75 MHz

VHF Unity Gain 96"
BSL100U-XX 75-140 MHz

VHF Unity Gain, 64"
BSL150U-A 144-150 MHz
BSL150U-B 150-156 MHz
BSL150U-C 156-162 MHz
BSL150U-D 162-168 MHz
BSL150U-E 168-174 MHz
BSL220U-A 200-210 MHz
BSL220U-B 210-220 MHz
BSL220U-C 215-225 MHz

VHF 3dBd Gain, 96"
BSL150XL3-A 144-150 MHz
BSL150XL3-B 150-156 MHz
BSL150XL3-BC 153-159 MHz
BSL150XL3-C 156-162 MHz
BSL150XL3-D 162-168 MHz
BSL150XL3-E 168-174 MHz
BSL220XL3-A 200-210 MHz
BSL220XL3-B 210-220 MHz
BSL220XL3-C 215-225 MHz

Dual Band VHF/UHF
Unity Gain, 64"
BSLDB31U 140-174/440-512 MHz

Comtelco VHF Antenna Specifications

MartinRFSupply.net or MartinRFSupply.com

All Comtelco VHF band antennas are available in three different radome diameters.

The BSXL series has a standard duty 1" diameter radome that suits all applications where the BSL is not needed.

Features: Comtelco VHF Omini-Directional Base Station Antenna
75 - 225 MHz - Dual Band available
Unity to 3 dBd Gain - HF also available

SELECT FROM THE LIST BELOW FOR THE MODEL TO MATCH YOUR REQUIRMENTS

BSXL Standard Duty Series

VHF Unity Gain 96"
BSXL100U-XX 75-140 MHz

VHF Unity Gain, 64"
BS150U-A 144-150 MHz
BS150U-B 150-156 MHz
BS150U-C 156-162 MHz
BS150U-D 162-168 MHz
BS150U-E 168-174 MHz
BS220U-A 200-210 MHz
BS220U-B 210-220 MHz
BS220U-C 215-225 MHz

VHF 3dBd Gain, 96"
BS150XL3-A 144-150 MHz
BS150XL3-B 150-156 MHz
BS150XL3-BC 153-159 MHz
BS150XL3-C 156-162 MHz
BS150XL3-D 162-168 MHz
BS150XL3-E 168-174 MHz
BS220XL3-A 200-210 MHz
BS220XL3-B 210-220 MHz
BS220XL3-C 215-225 MHz

Dual Band VHF/UHF Unity Gain, 64"
BSXLDB31U 140-174/440-512 MHz

Comtelco VHF Antenna Specifications

MartinRFSupply.net or MartinRFSupply.com

All Comtelco UHF band antennas are available in three different radome diameters.

The BSLL series has a super duty 2" diameter radome that provides the most protection of all our omni-directional base antenna.s

Features: Comtelco UHF Omini-Directional Base Station Antenna
375 - 512 MHz - Dual Band available
Unity to 6 dBd Gain

SELECT FROM THE LIST BELOW FOR THE MODEL TO MATCH YOUR REQUIRMENTS

BSLL Super Duty Series

UHF Unity Gain, 36"
BSLL450U-A 406-430 MHz
BSLL450U-B 430-450 MHz
BSLL450U-BC 445-465 MHz
BSLL450U-C 450-470 MHz
BSLL450U-CD 460-480 MHz
BSLL450U-D 470-490 MHz
BSLL450U-DE 480-500 MHz
BSLL450U-E 490-512 MHz

UHF Wide Band
BSLL450XL3WB 450-512 MHz

UHF 4.5 dBd Gain, 60"
BSLL450XL4.5-A 406-430 MHz
BSLL450XL4.5-B 430-450 MHz
BSLL450XL4.5-C 450-480 MHz
BSLL450XL4.5-D 470-490 MHz
BSLL450XL4.5-E 490-512 MHz
UHF 6 dBd Gain, 96"
BSLL450XL6-A 406-440 MHz
BSLL450XL6-B 440-460 MHz
BSLL450XL6-C 450-470 MHz
BSLL450XL6-D 460-480 MHz
BSLL450XL6-E 480-512 MHz

Dual Band VHF/UHF Unity Gain, 64"
BSLLDB31U 140-174/440-512 MHz

Comtelco VHF Antenna Specifications

MartinRFSupply.net or MartinRFSupply.com

All Comtelco UHF band antennas are available in three different radome diameters.

The BSL series has a heavy duty 1 1/2" diameter radome to withstand the most demanding conditions.

Features: Comtelco UHF Omini-Directional Base Station Antenna
375 - 512 MHz - Dual Band available
Unity to 6 dBd Gain

SELECT FROM THE LIST BELOW FOR THE MODEL TO MATCH YOUR REQUIRMENTS

BSL Heavy Duty Series

UHF Unity Gain, 36"
BSL450U-A 406-430 MHz
BSL450U-B 430-450 MHz
BSL450U-BC 445-465 MHz
BSL450U-C 450-470 MHz
BSL450U-CD 460-480 MHz
BSL450U-D 470-490 MHz
BSL450U-DE 480-500 MHz
BSL450U-E 490-512 MHz

UHF Wide Band
BSL450XL3WB 450-512 MHz

UHF 4.5 dBd Gain, 60"
BSL450XL4.5-A 406-430 MHz
BSL450XL4.5-B 430-450 MHz
BSL450XL4.5-C 450-480 MHz
BSL450XL4.5-D 470-490 MHz
BSL450XL4.5-E 490-512 MHz

UHF 6 dBd Gain, 96" / Mfr List Price
BSL450XL6-A 406-440 MHz
BSL450XL6-B 440-460 MHz
BSL450XL6-C 450-470 MHz
BSL450XL6-D 460-480 MHz
BSL450XL6-E 480-512 MHz

Dual Band VHF/UHF Unity Gain, 64"
BSLDB31U 140-174/440-512 MHz

Comtelco VHF Antenna Specifications

BSMNT1 Base Station Mount Kit: The BSMNT1 mount kit is designed to be used with shorter BSXL series base station antennas. The mount consists of a single extruded aluminum bracket with a stainless steel V bolt that can handle a mast diameter of up to 2 3/8.

Comtelco Base Antenna Mounting Brackets

MartinRFSupply.net or MartinRFSupply.com

All Comtelco UHF band antennas are available in three different radome diameters.

The BSXL series has a standard duty 1" diameter radome that suits all applications where the BSL is not needed.

Features: Comtelco UHF Omini-Directional Base Station Antenna
375 - 512 MHz - Dual Band available
Unity to 6 dBd Gain

SELECT FROM THE LIST BELOW FOR THE MODEL TO MATCH YOUR REQUIRMENTS

BSXL Standard Duty Series

UHF Unity Gain, 36"
BSXL380U-A 375-400 MHz
BSXL450U-A 406-430 MHz
BSXL450U-B 430-450 MHz
BSXL450U-BC 445-465 MHz
BSXL450U-C 450-470 MHz
BSXL450U-CD 460-480 MHz
BSXL450U-D 470-490 MHz
BSXL450U-DE 480-500 MHz
BSXL450U-E 490-512 MHz

UHF 3 dBd Gain, 48"
BS380XL3-A 375-400 MHz
BS450XL3-A 406-430 MHz
BS450XL3-B 430-450 MHz
BS450XL3-BC 445-465 MHz
BS450XL3-C 450-470 MHz
BS450XL3-CD 460-480 MHz
BS450XL3-D 470-490 MHz
BS450XL3-DE 480-500 MHz
BS450XL3-E 490-512 MHz

UHF 4.5 dBd Gain, 62"
BS450XL4.5-A 406-430 MHz
BS450XL4.5-B 430-450 MHz
BS450XL4.5-C 450-480 MHz
BS450XL4.5-D 470-490 MHz
BS450XL4.5-E 490-512 MHz

UHF Wide Band
BS450UWB 450-512 MHz
BS450XL3WB 450-512 MHz BR> BS650UWB 620-680 MHz

UHF 6 dBd Gain, 98"
BS450XL6-A 406-440 MHz
BS450XL6-B 440-460 MHz
BS450XL6-C 450-470 MHz
BS450XL6-D 460-480 MHz
BS450XL6-E 480-512 MHz

Dual Band VHF/UHF Unity Gain
BSDB31U 140-174/440-512 MHz

Dual Band 3dBi / 5dBi Gain, 36"
BSDB315U9 315-325/900-930 MHz

Comtelco VHF Antenna Specifications

BSMNT2 Base Station Mount Kit: The BSMNT2 mount kit is designed to be used with longer BSXL series base station antennas. The mount consists of 2 extruded aluminum brackets and stainless steel V bolts that will handle a 2 3/8 diameter mast.

Comtelco Base Antenna Mounting Brackets

BSLMNT2 Base Station Mount Kit: The BSLMNT2 mount kit is designed to be used with BSLXL series base station antennas. The mount consists of 3 extruded aluminum brackets and 2 long stainless steel V bolts that will handle a 2 3/8 diameter mast.

Comtelco Base Antenna Mounting Brackets

BST Base Station Mount Kit: The BST is a light duty mount kit designed to be used with a BSXL base station antenna less than 36 long. The mount comes with two stainless steel V bolts that will handle a 2 3/8" diameter mast. The mount is black epoxy powder coated.

Comtelco Base Antenna Mounting Brackets

BNT Base Station Mount Kit: The BNT is a mount kit designed to be used with BNF type base station antennas. The mount comes with two U bolts that will handle a 1 3/8 mast. The mount is black epoxy powder coated.

Comtelco Base Antenna Mounting Brackets

If a larger tower leg is being used, stainless steel strapping (not supplied) can be used. These side mounts are very heavy duty with galvanized finish.

The BSSMNT10 is 12" high and will move the antenna 25" off the tower leg.

HEIGHT 12"
LENGTH 25"
WEIGHT 9.5 lbs
FLAT PLATE AREA .29 ft2
WIND LOAD 19.8 lbs.

Comtelco Base Antenna Mounting Brackets

BSSMNT20
HEIGHT 22
LENGTH 25"
WEIGHT 11.5 lbs.
FLAT PLATE AREA .44 ft2
WIND LOAD 30 lbs.

Comtelco Base Antenna Mounting Brackets

Comtelco Base Antenna Mounting Brackets

SSU Stainless Steel U-bolt Kit $15.75

Comtelco Base Antenna Mounting Brackets

MartinRFSupply.net or MartinRFSupply.com

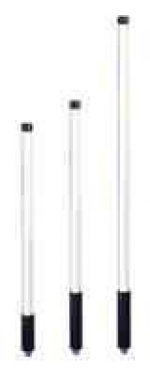

All Comtelco 800/900 MHz band antennas are available in four different radome diameters.

The BSXL series has a standard duty 1" diameter radome that suits all applications where the BSL is not needed.

Features: Comteclo 800/900 MHz Omni-DIrectional Base Antenna
700 - 1000 MHz - Unity to 6.5 dBd Gain
Wide Band available -Tri Mode available

SELECT FROM THE LIST BELOW FOR THE MODEL TO MATCH YOUR REQUIRMENTS

700/900 MHz Wide Band Unity Gain, 18"
BS750UWB 746-896 MHz
BS800UWB 806-960 MHz
BSM800UWB 806-960 MHz

800/900 MHz Wide Band 3 dBd Gain, 38"
BS800XL3WB 806-896 MHz
BSM800XL3WB 806-896 MHz

800/900 MHz 3 dBd Gain, 30"
BS915XL3 900-930 MHz

700/900 MHz 5 dBd Gain, 52"
BS725XL5 698-746 MHz
BS750XL5 746-796 MHz
BS750XL7 746-796MHz
BS800XL5-A 806-866 MHz
BS800XL5-C 825-896 MHz
BS800XL5-E 890-970 MHz
BS915XL5 900-930 MHz

800/900 MHz 6.5 dBd Gain, 64"
BS800XL7-A 806-866 MHz
BS800XL7-C 825-896 MHz
BS800XL7-E 890-970 MHz
BS915XL7 900-930 MHz

Tri Mode 3 dB 18" 800 / 1900 Cell / PCS
BSDB18U8 825-896/1850-1990 MHz
BSDB18U9 921-960/1805-1880 MHz

Dual Band 3dBi / 5dBi Gain, 36"
BSDB315U9 315-325/900-930 MHz

Comtelco 800/900 MHz Antenna Specifications

MartinRFSupply.net or MartinRFSupply.com

All Comtelco 800/900 MHz band antennas are available in four different radome diameters.

The BSL series has a heavy duty 1 1/2" diameter radome to withstand demanding conditions.

800/900 MHz Wide Band Unity Gain, 24"
BSL750UWB 746-896 MHz
BSL800UWB 806-960 MHz

800/900 MHz Wide Band 3 dBd Gain, 36"
BSL800XL3WB 806-896 MHz

800/900 MHz 5 dBd Gain, 52"
BSL800XL5-A 806-866 MHz
BSL800XL5-C 825-896 MHz
BSL800XL5-E 890-970 MHz

800/900 MHz 6.5 dBd Gain, 64"
BSL800XL7-A 806-866 MHz
BSL800XL7-C 825-896 MHz
BSL800XL7-E 890-970 MHz

Tri Mode 3 dB 18" 800 / 1900 Cell / PCS
BSLDB18U8 825-896/1850-1990 MHz
BSLDB18U9 921-960/1805-1880 MHz

Comtelco 800/900 MHz Antenna Specifications

The BSLL series has a super duty 2" diameter radome that provides the most protection of all our omni-directional base antennas.

800/900 MHz Wide Band Unity Gain, 24"
BSLL750UWB 746-896 MHz
BSLL800UWB 806-960 MHz

800/900 MHz Wide Band 3 dBd Gain, 36"
BSLL800XL3WB 806-896 MHz

800/900 MHz 5 dBd Gain, 52"
BSLL800XL5-A 806-866 MHz
BSLL800XL5-C 825-896 MHz
BSLL800XL5-E 890-970 MHz

800/900 MHz 6.5 dBd Gain, 64"
BSLL800XL7-A 806-866 MHz
BSLL800XL7-C 825-896 MHz
BSLL800XL7-E 890-970 MHz

Comtelco 800/900 MHz Antenna Specifications
